20 Series General Service Gauges
Dual Scale
20 SERIES: 1½”, 2”, 2½”, and 4” Casing. Center back, bottom, front, or panel mount.
These gauges are designed for use with air/pneumatic, gas, oil, and water or any medium not corrosive to brass or bronze.

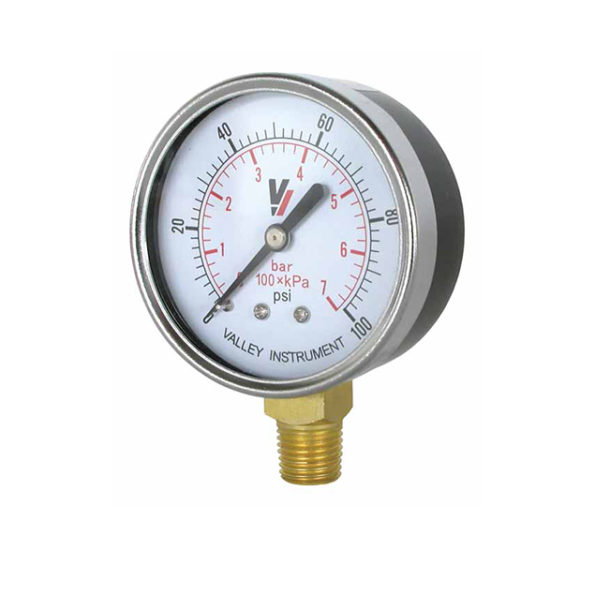

1120DSB200 = 2” Bottom Mount, Model 20, Dry, Steel Case, 200 PSI
View Ordering Information below. *Denotes special order.
Product Specs
| Movement | Bourdon Type | Pointer | Dial | Window | Case Material | Bezel | Connection Size | Accuracy | Fill Material | Wetted Parts |
|---|---|---|---|---|---|---|---|---|---|---|
| Brass | C-Shaped in copper alloy up to 600 PSI and Helical in phosphor bronze above 600 PSI | Black enameled aluminum | White aluminum | Acrylic | Steel, black painted | Chrome plated | 1/8” MNPT on 1-1/2” size. 1/4” MNPT on 2”, 2-1/2” and 4” sizes | ASME/ANSI B40.1 Grade B (3-2-3%) | Dry only | Copper alloy |
Ordering Information
| 1st Digit | 2nd Digit | 3rd, 4th Digit | 5th Digit | 6th Digit | 7th Digit | Range | Suffix |
|---|---|---|---|---|---|---|---|
| Dial Size | Case Style | Model# | Fill Material | Case Material | Wetted Parts | PSI | Options |
| 0 = 1-1/2" | 1 = Bottom | 20 | D = Dry* | S = Steel | B = Brass | -See Range Chart | -Custom Logo |
| 1 = 2" | 2 = Back | - | - | - | - | VAC = 30" | -Color Dial |
| 2 = 2-1/2" | 3 = Front | - | - | - | - | - | -Special Dial |
| 4 = 4" | 4 = Panel | - | - | - | - | - | -Etc. |
