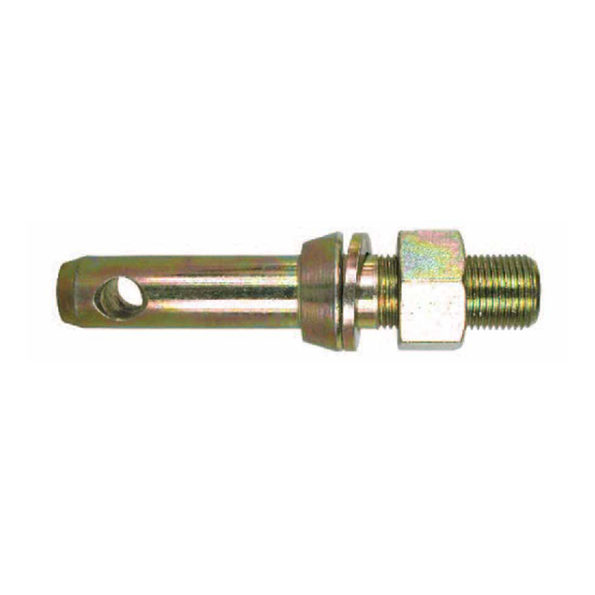

Forged Implement Pins
| Part# | Case# | Farmex# | HH# | Speeco# | Tisco# | Size | Pin Diameter | Overall Length | UNF Thread | Usable Length |
|---|---|---|---|---|---|---|---|---|---|---|
| 152IP | B500197 | 00200 | 21226 | P728 | P2000 | Cat 1 Forged | 7/8" | 5-1/2" | 7/8" | 1-3/4" |
| 153IP | B500199 | 3004 | 21224 | P7245 | P2000XL | Cat 1 Extra Long Forged | 7/8" | 6-1/2" | 7/8" | 2-1/4" |
| 155IP | NA | 00202 | 21232 | P7240 | NA | Cat 2 Forged | 1-1/8" | 5-1/4" | 7/8" | 1-5/8" |
| 156IP | B500201 | 3178 | 21240 | P7246 | P6502 | Cat 2 Extra Long Forged | 1-1/8" | 6-5/16" | 7/8" | 2-1/4" |
| 157IP | B500202 | 3006 | 21242 | P7212 | NA | Cat 2 Forged | 1-1/8" | 6-1/4" | 1-1/8" | 1-3/4" |
Interested in the Forged Implement Pins? Drop your details below and we will be in touch shortly!
